Product Description

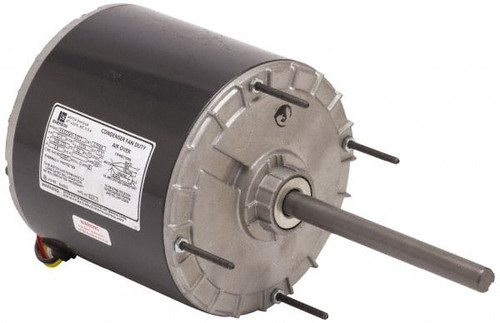

US MOTORS 1822V - CONDENSER FAN MOTOR, 2 HP - MOTOR,2HP,1140RPM,208-230/460V,60HZ,56YZ, MOTOR DESIGN 3-PHASE, PHASE THREE, 2 HP, NO. OF SPEEDS 1, VOLTAGE 208-230/460V AC, MOTOR SHAFT ROTATION CCW, 56 FRAME, MOTOR ENCLOSURE DESIGN OPEN DRIPPROOF, RIGID BASE MOTOR MOUNTING TYPE, SHAFT DIA. 5/8 IN, MOTOR THERMAL PROTECTION T-STAT, MAX. AMBIENT TEMP. 70 DEGREES C, NAMEPLATE RPM 1,140, HVAC/R, CONDENSER COOLING FANS IN COMMERCIAL AIR CONDITIONING, 60 HZ, FULL LOAD AMPS 7.8-7.8/3.9 A, INS. CLASS F, MOTOR SERVICE FACTOR 1, OVERALL LENGTH 16 3/4 IN - EQUAL TO G0919659
MANUFACTURER:
US MOTORS
MANUFACTURER PART NUMBER:
1822V
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
32
CONTRACTOR PART NUMBER:
2516928512
