Product Description

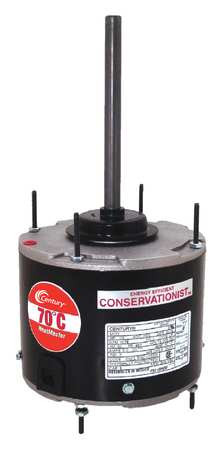

CENTURY FEH1026SF - CONDENSER FAN MOTOR,1/4 HP,1075 RPM,60HZ - CONDENSER FAN MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 1/4 HP, NAMEPLATE RPM 1,075, NO. OF SPEEDS 1, VOLTAGE 460V AC, 1.00 FULL LOAD AMPS, 48 FRAME, OUTPUT WATTS 190 W, 60 HZ, REPLACEMENT FOR MFR. NO. 3736HS, USABLE @ 208V NO, USABLE @ 200V NO, MOTOR SERVICE FACTOR 1, MOTOR THERMAL PROTECTION AUTO, INS. CLASS F, DUTY CYCLE CONTINUOUS, MAX. AMBIENT TEMP. 70 DEGREES C, MOTOR SHAFT ROTATION CW/CCW, MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED AIR-OVER, MOTOR MOUNTING TYPE STUD - EQUAL TO G3404807
MANUFACTURER:
CENTURY
MANUFACTURER PART NUMBER:
FEH1026SF
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
INDIA
ORDER INCREMENT:
1
WEIGHT:
12.8
CONTRACTOR PART NUMBER:
2510034569
