Product Description

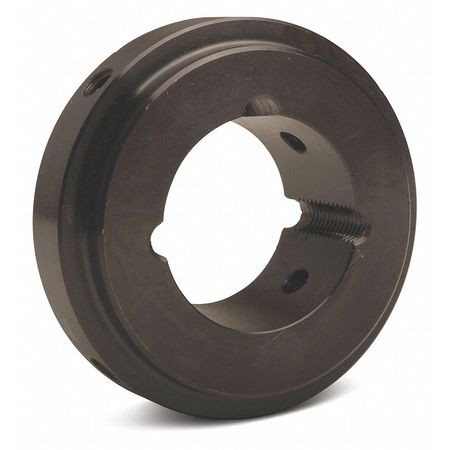

TB WOOD'S WE20HTL - TAPER LOCK CPLG HUB WE20 MAX 1-11/16 - TAPER LOCK FLEXIBLE SHAFT COUPLING HUB BODY STYLE WE20 BORE DIA (IN.) MAX 1-11/16 LENGTH THROUGH BORE (IN.) 1 RATED TORQUE (IN.-LB.) 2300 MAX. RPM 6600 KEYSEAT SIZE (IN.) NONE OUTSIDE DIA (IN.) 4.48 WIDTH (IN.) 1 HEIGHT (IN.) 4.48 HUB DIA (IN.) 4.48 MATERIAL OF CONSTRUCTION LOW CARBON STEEL SETSCREW LOCATION ONE OVER KEYWAY MAX. ANGULAR MISALIGNMENT 3 DEGREE IDEAL FOR TL1610 NUMEROUS INDUSTRIAL APPLICATIONS INCLUDING PUMPS MOTORS COMPRESSORS BUSHING REQUIRED 1610 - EQUAL TO G5641991
MANUFACTURER:
TB WOOD'S
MANUFACTURER PART NUMBER:
WE20HTL
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
3.4
CONTRACTOR PART NUMBER:
2511086942
