Product Description

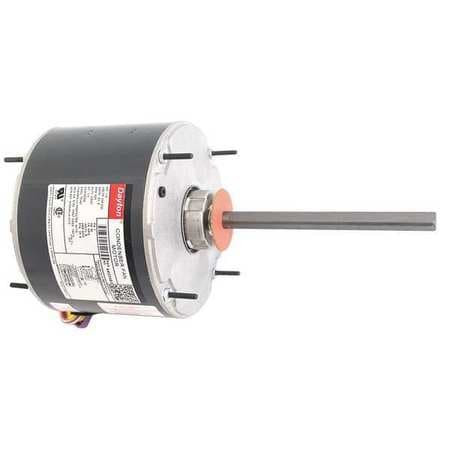

DAYTON 4M226 - CONDENSER FAN MOTOR,1/4 HP,825 RPM,60 HZ - CONDENSER FAN MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 1/4 HP, NAMEPLATE RPM 825, NO. OF SPEEDS 1, VOLTAGE 208-230V AC, 2.00-2.00 FULL LOAD AMPS, 48YZ FRAME, 60 HZ, MOTOR SERVICE FACTOR 1, MOTOR THERMAL PROTECTION AUTO, INS. CLASS B, DUTY CYCLE CONTINUOUS, MAX. AMBIENT TEMP. 60 DEGREES C, MOTOR SHAFT ROTATION CW/CCW, MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED AIR-OVER, MOTOR MOUNTING TYPE STUD, MOTOR MOUNTING POSITION ALL ANGLE, SHAFT LENGTH 6 IN, LEAD LENGTH 30 IN - EQUAL TO G2995106
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
4M226
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
ORDER INCREMENT:
1
WEIGHT:
12.52
CONTRACTOR PART NUMBER:
2511288944
