Product Description

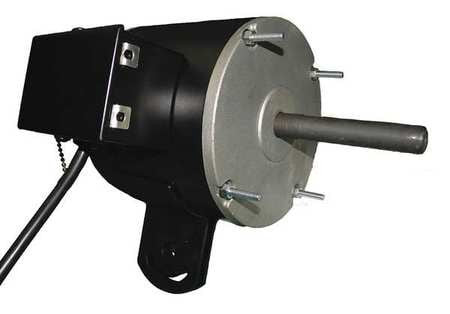

AIRMASTER FAN 78018 - PEDESTAL FAN MOTOR 115V 1/4 HP - PEDESTAL FAN MOTOR PERMANENT SPLIT CAPACITOR TOTALLY ENCLOSED AIR-OVER 1/4 HP NAMEPLATE RPM 1100 VOLTAGE 115 FULL LOAD AMPS 3.5 HZ 60 PHASE 1 48YZ FRAME 1.00 MOTOR SERVICE FACTOR AMBIENT TEMPERATURE 40 DEGREES C INS. CLASS B DUTY CONTINUOUS YOKE MOTOR MOUNTING TYPE BALL MOTOR BEARINGS AUTO MOTOR THERMAL PROTECTION CWSE MOTOR SHAFT ROTATION BODY DIA 5-3/4 IN. SHAFT DIA 5/8 IN. SHAFT LENGTH 3-1/2 IN. 1001-1100 RPM RANGE - EQUAL TO G0276090
MANUFACTURER:
AIRMASTER FAN
MANUFACTURER PART NUMBER:
78018
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
CHINA
ORDER INCREMENT:
1
WEIGHT:
22
CONTRACTOR PART NUMBER:
2512040695
