Product Description

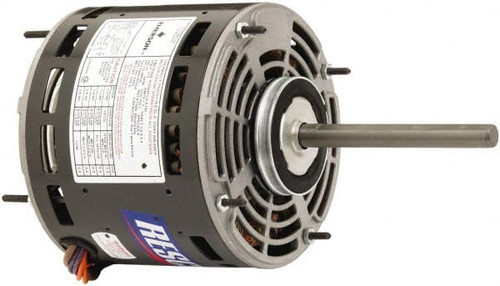

US MOTORS 8525 - MOTOR, 1/6HP, 1625/4SPD, 115V, 60HZ, 48Y - FAN AND BLOWER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 1/6 HP HP, NAMEPLATE RPM 1,625 RPM, NO. OF SPEEDS 4, VOLTAGE 115V AC, 2.2 A FULL LOAD AMPS, 48Y FRAME, OUTPUT WATTS 100 W, 60 HZ HZ, MOTOR SERVICE FACTOR 1, MOTOR THERMAL PROTECTION AUTO, INS. CLASS B, DUTY CYCLE CONTINUOUS, MAX. AMBIENT TEMP. 40 DEGREES C, MOTOR SHAFT ROTATION CW/CCW, MOTOR ENCLOSURE DESIGN OPEN AIR OVER, MOTOR MOUNTING TYPE CRADLE BASE, MOTOR FRAME MATERIAL STEEL, SHAFT LENGTH 9 7/16 IN - EQUAL TO G0917559
MANUFACTURER:
US MOTORS
MANUFACTURER PART NUMBER:
8525
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
8.64
CONTRACTOR PART NUMBER:
2512698788
