Product Description

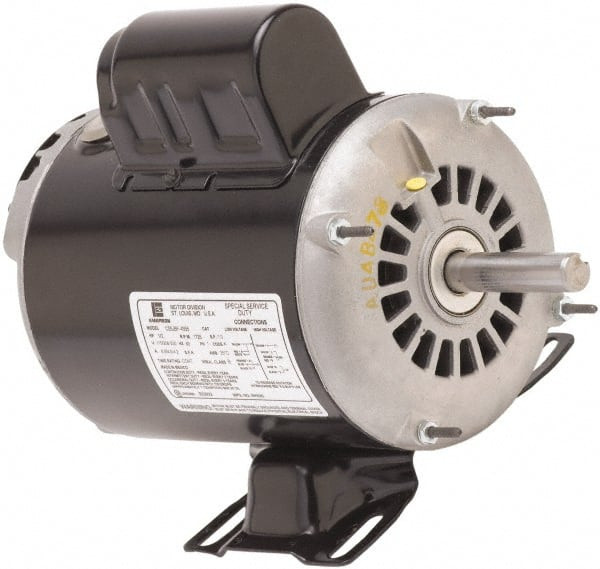

US MOTORS D2CM2J14 - MOTOR - GENERAL PURPOSE MOTOR SINGLE PHASE MOTOR DESIGN CAPACITOR-START/RUN 2 HP NAMEPLATE RPM 1 725 RPM NO OF SPEEDS 1 VOLTAGE 115/208-230V AC FULL LOAD AMPS 20.0/11.3-10.0 145T FRAME 60 HZ MOTOR SERVICE FACTOR 1.15 MOTOR THERMAL PROTECTION MANUAL INS. CLASS F MAX AMBIENT TEMP 104 DEGREES F DUTY CYCLE CONTINUOUS MOTOR SHAFT ROTATION CCWLE MOTOR ENCLOSURE DESIGN OPEN DRIPPROOF MOTOR MOUNTING TYPE RIGID BASE SHAFT DIA 7/8 IN SHAFT LENGTH 2 5/16 IN MOTOR SHAFT DESIGN KEYED - EQUAL TO 783RP7
MANUFACTURER:
US MOTORS
MANUFACTURER PART NUMBER:
D2CM2J14
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
32
CONTRACTOR PART NUMBER:
2512745955
