Product Description

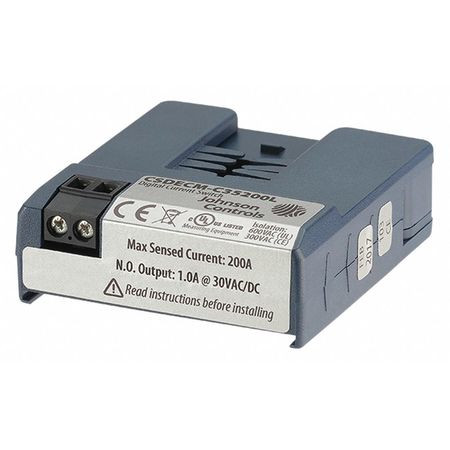

JOHNSON CONTROLS CSDECM-C35200L0 - CURRENT SENSING RELAY,0.50A,NO RELAY - CURRENT SENSING RELAY, CONTACT FORM SPST-NO, CONTACT RATING (AC) 10 A @ 125V, CONTACT RATING (DC) 1 A @ 30V, CORE TYPE SPLIT, CURRENT RATING 200 A, INPUT VOLTAGE SELF POWERED, MONITORED PARAMETERS OVERCURRENT, UNDERCURRENT, MOUNTING STYLE SURFACE, TRIP POINT 0.35 A, TRIP POINT TYPE FIXED, ADJUSTMENT METHOD SWITCH, ELECTRICAL CONNECTION TERMINAL STRIP, SENSING HOLE DIAMETER 0.75 IN, STATUS INDICATOR LED INDICATOR, WIRE GAUGE 14 AWG, 22 AWG, BODY DEPTH 2.23 IN, BODY HEIGHT 2.5 IN - EQUAL TO G6322187
MANUFACTURER:
JOHNSON CONTROLS
MANUFACTURER PART NUMBER:
CSDECM-C35200L0
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
0.18
CONTRACTOR PART NUMBER:
2512954855
