Product Description

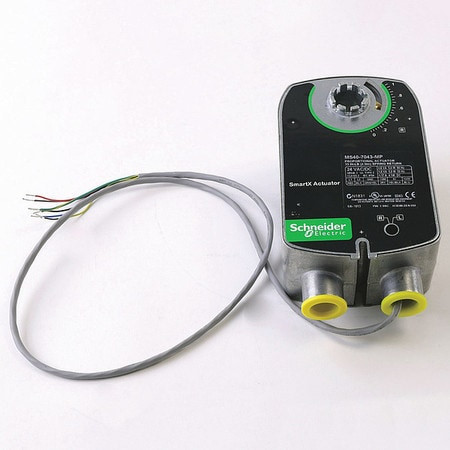

SCHNEIDER ELECTRIC MS40-7043-MP - ELECTRIC ACTUATOR,24V,6 TO 9VDC,DCA - ACTUATOR, VALVE APPLICATION DAMPER AND VALVE, SIGNAL TYPE PROPORTIONAL, RATED TORQUE 150 LB-IN, INPUT VOLTAGE 22 TO 30V DC, 24V AC, OUTPUT SIGNAL 20V DC, ELECTRICAL CONNECTION TYPE HARDWIRED, NEMA RATING 2, IP RATING IP54, SPRING RETURN SPRING RETURN, SHAFT ROTATION CW/CCW, STROKE DEGREE 40 DEGREES ; 95 DEGREES , MOUNTING TYPE DIRECT MOUNT, MAXIMUM OPERATING TEMPERATURE 140 DEGREES F, MINIMUM OPERATING TEMPERATURE -22 DEGREES F, OVERALL WIDTH 4 IN, APPLICATION DAMPERS, VALVES - EQUAL TO G2086651
MANUFACTURER:
SCHNEIDER ELECTRIC
MANUFACTURER PART NUMBER:
MS40-7043-MP
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
3.9
CONTRACTOR PART NUMBER:
2512990993
