Product Description

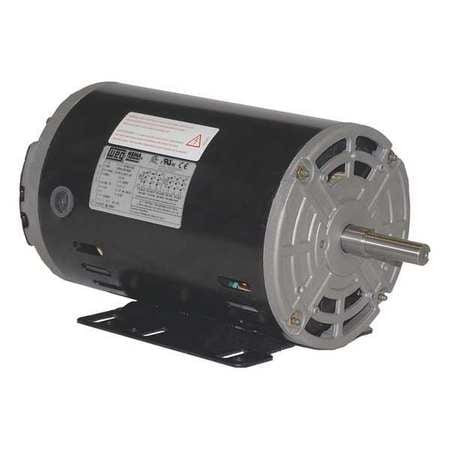

WEG .3318OT3E56-S - GENERAL PURPOSE MOTOR 1/3 HP 56 FRAME - GENERAL PURPOSE MOTOR 3-PHASE OPEN DRIPPROOF 1/3 HP NAMEPLATE RPM 1765 56 FRAME VOLTAGE 230/460 60/50 HZ 3 PHASE 1.3/0.66 FULL LOAD AMPS NO OF SPEEDS 1 MOTOR MOUNTING TYPE RIGID BASE MOTOR MOUNTING POSITION ALL ANGLE MOTOR THERMAL PROTECTION NONE INS. CLASS F 1.35 MOTOR SERVICE FACTOR BALL MOTOR BEARINGS MOTOR FRAME MATERIAL ROLLED STEEL MAX AMBIENT TEMP 40 DEGREES C CW/CCW MOTOR SHAFT ROTATION OVERALL LENGTH 10 5/16 IN MOTOR SHAFT DESIGN KEYED - EQUAL TO G7745258
MANUFACTURER:
WEG
MANUFACTURER PART NUMBER:
.3318OT3E56-S
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
ORDER INCREMENT:
1
WEIGHT:
18.7
CONTRACTOR PART NUMBER:
2513304682
