Product Description

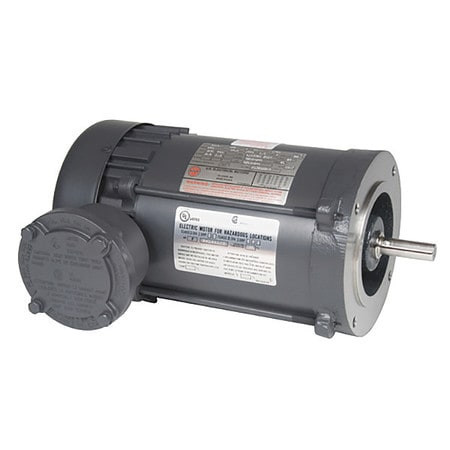

US MOTORS XS12CA1J - MOTOR,1/2 HP,3450 RPM,56,115/208-230V - MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 1/2 HP, NAMEPLATE RPM 3,450, NO. OF SPEEDS 1, VOLTAGE 115/208-230V AC, FULL LOAD AMPS 8.8/4.1-4.4, 56 FRAME, USABLE @ 208V YES, USABLE @ 200V NO, HZ 60, MAX. AMBIENT TEMP. 104 DEGREES F, MOTOR SERVICE FACTOR 1, MOTOR THERMAL PROTECTION AUTO, INS. CLASS B, HAZARDOUS LOCATION CLASS CLASS I, GROUP CD, CLASS II, GROUP EF & G, TEMP. CODE T3C, MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED FAN-COOLED, DUTY CYCLE CONTINUOUS, MOTOR MOUNTING TYPE RIGID BASE - EQUAL TO G1931707
MANUFACTURER:
US MOTORS
MANUFACTURER PART NUMBER:
XS12CA1J
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
32
CONTRACTOR PART NUMBER:
2513582252
