Product Description

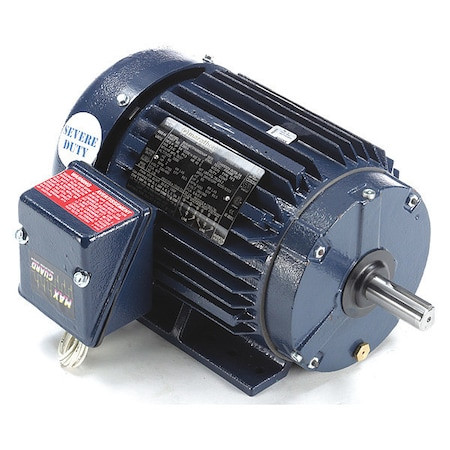

US MOTORS HD1P3EC - GP MOTOR,1 HP,1165V RPM,230/460,145TC - MOTOR, THREE PHASE, MOTOR DESIGN 3-PHASE, 1 HP, NAMEPLATE RPM 1,165, NO. OF SPEEDS 1, VOLTAGE 230/460V AC, FULL LOAD AMPS 3.7/1.8, 145TC FRAME, USABLE @ 208V YES, USABLE @ 200V YES, HZ 60/50, MOTOR SERVICE FACTOR 1.15, MAX. AMBIENT TEMP. 40 DEGREES C, MOTOR THERMAL PROTECTION NOT APPLICABLE, DUTY CYCLE CONTINUOUS, INS. CLASS F, NEMA DESIGN B, MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED FAN-COOLED, MOTOR SHAFT ROTATION CW/CCW, MOTOR MOUNTING TYPE RIGID BASE, MOTOR MOUNTING POSITION HORIZONTAL - EQUAL TO G1942082
MANUFACTURER:
US MOTORS
MANUFACTURER PART NUMBER:
HD1P3EC
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
70
CONTRACTOR PART NUMBER:
2513909884
