Product Description

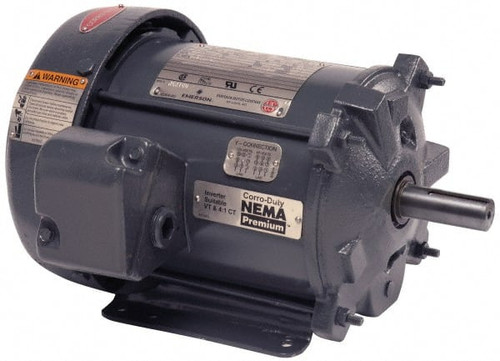

US MOTORS C5P2DCR - MOTOR 3PH 5HP 1800 208-230/460V EFF 89.5 - GENERAL PURPOSE MOTOR THREE PHASE MOTOR DESIGN 3-PHASE 5 HP NAMEPLATE RPM 1 755 NO OF SPEEDS 1 VOLTAGE 208-230/460V AC FULL LOAD AMPS 13.7-12.5/6.3 A 184TC FRAME USABLE @ 208V YES HZ 60/50 HZ MOTOR SERVICE FACTOR 1.15 MAX AMBIENT TEMP 40 DEGREES C MOTOR THERMAL PROTECTION NONE DUTY CYCLE CONTINUOUS INS. CLASS F NEMA DESIGN B MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED FAN-COOLED MOTOR SHAFT ROTATION CW/CCW MOTOR MOUNTING TYPE RIGID BASE MOTOR MOUNTING POSITION HORIZONTAL - EQUAL TO 264A76
MANUFACTURER:
US MOTORS
MANUFACTURER PART NUMBER:
C5P2DCR
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
110
CONTRACTOR PART NUMBER:
2517071909
